Adjusting sampling rates for Hawkular APM on OpenShift

A blog post by Juraci Paixão Kröhling

apm | obsidian-toaster | openshift | opentracing | vertx



When doing distributed tracing of a busy application, it’s a good practice to limit the amount of data being collected or stored. The techniques for that are diverse, ranging from a simple "percentage based sampling" of the incoming requests, up to complex heuristics to keep/discard traces based on the code path.

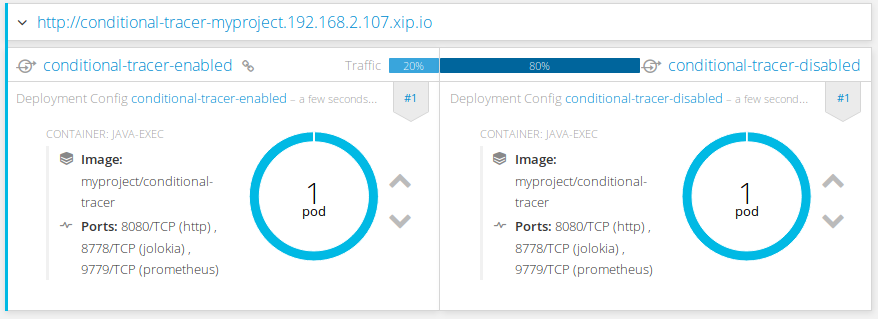

Final result

It’s also a good practice to empower the admin, or an automated monitoring system, with the capability of adjusting the sampling based on the current conditions. For instance, we’d probably want to get more traces from a newly deployed version of an existing application, as we might want to compare the performance and adjust the percentage in steps. Or even, we want more information from an application that we suspect to be behaving badly. Similarly, if we are experiencing expected traffic peaks and need every resource available, we might enable tracing only to a small percentage of the incoming requests.

For the simple scenario, let’s call it "percentage based sampling", we have a few alternatives on how to implement it:

Application-based decision

In this scenario, we embed the logic into the application, using the percentage as the probability a random number is within a range. In other words: 20% sampling would be 20% chance that a number is lower or equal to 2 on a range of 1-10. Anything more complex than that would be "too much" for our scenario.

As hinted before, we want to externalize the percentage so that an external actor can change this. One solution is to store this percentage number into an environment variable on the Deployment Configuration (DC). This will, however, rollout a new deployment after every change, which might not be desirable in some scenarios.

Another solution is to externalize this into a Configuration Map (ConfigMap), but then, we also need to let our application listen to events related to this ConfigMap. For a microservice, we might end up with a bunch of unrelated dependencies, just to decide whether or not to trace a request.

OpenShift-based decision

In this scenario, we delegate the decision to our runtime environment. Similar to a simple A/B testing scenario, our deployment architecture would allow for quick changes in the routing decision. It does require a simple change to our application, but it’s a small compromise for the benefits it provides.

For that, we’ll use one single Image Stream (is) with our code, two Deployment Configurations (dc), two Services (svc) and one Route object. Each one of our dc objects would have a different value for an environment variable called TRACER_ENABLED. Each svc has its own dc, and the router sends a percentage of the requests to each of the svc instances. The main advantage of this approach is that the application image is the same for both tracing-enabled and tracing-disabled scenarios.

Doing it!

Enough talk, let’s start doing it. The first step is to create an OpenShift cluster. The following commands will give us a recent version of OpenShift Origin and will deploy Hawkular APM on it:

$ oc cluster up --version=latest
$ oc create -f https://raw.githubusercontent.com/jboss-dockerfiles/hawkular-apm/master/openshift-templates/hawkular-apm-server-deployment.yml

We’ll now bootstrap a vert.x application from scratch via Obsidian Toaster. For our example, click on "…​ selecting a runtime project framework", select "Vert.x" and give it a name like conditional-tracer (leave the package name as com.example and the version as 1.0.0-SNAPSHOT). On the next step, set the Vert.x version to 3.3.3 and select Vert.x Web. Scroll down the list and click Finish and download the ZIP file.

Note
 Obsidian Toaster is still in alpha. If it’s not working for some reason, we have a ZIP file ready for you to download link: conditional-tracer.zip

Let’s add our Hawkular APM dependencies to our new project by adding the following lines to the pom.xml:

<dependency>
  <groupId>org.hawkular.apm</groupId>
  <artifactId>hawkular-apm-trace-publisher-rest-client</artifactId>
  <version>0.14.2.Final</version>
</dependency>
<dependency>
  <groupId>org.hawkular.apm</groupId>
  <artifactId>hawkular-apm-client-opentracing</artifactId>
  <version>0.14.2.Final</version>
</dependency>
<dependency>
  <groupId>com.fasterxml.jackson.core</groupId>
  <artifactId>jackson-core</artifactId>
  <version>2.6.0</version>
</dependency>
<dependency>
  <groupId>com.fasterxml.jackson.core</groupId>
  <artifactId>jackson-annotations</artifactId>
  <version>2.6.0</version>
</dependency>
<dependency>
  <groupId>com.fasterxml.jackson.core</groupId>
  <artifactId>jackson-databind</artifactId>
  <version>2.6.0</version>
</dependency>
Note
 we need to override the Jackson dependencies because of incompatibilities between the version Hawkular APM uses and the one Vert.x uses.

We now remove the src/main/fabric8/svc.yml:

$ rm src/main/fabric8/svc.yml

We’ll create two service files instead:

src/main/fabric8/no-tracer-svc.yml

apiVersion: v1
kind: Service
metadata:
  name: conditional-tracer-disabled
  labels:
    tracer: disabled
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    group: com.example
    project: conditional-tracer
    tracer: disabled
  type: ClusterIP

src/main/fabric8/tracer-svc.yml

apiVersion: v1
kind: Service
metadata:
  name: conditional-tracer-enabled
  labels:
    tracer: enabled
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    group: com.example
    project: conditional-tracer
    tracer: enabled
  type: ClusterIP

We now create our two dc objects:

src/main/fabric8/no-tracer-dc.yml

apiVersion: v1
kind: DeploymentConfig
metadata:
  labels:
    group: com.example
    project: conditional-tracer
    tracer: disabled
  name: conditional-tracer-disabled
spec:
  replicas: 1
  selector:
    group: com.example
    project: conditional-tracer
    tracer: disabled
  template:
    metadata:
      labels:
        group: com.example
        project: conditional-tracer
        tracer: disabled
    spec:
      containers:
      - env:
        - name: HAWKULAR_APM_URI
          value: http://hawkular-apm
        - name: HAWKULAR_APM_USERNAME
          value: admin
        - name: HAWKULAR_APM_PASSWORD
          value: password
        - name: TRACER_ENABLED
          value: false
        - name: JAVA_APP_DIR
          value: /deployments
        - name: JAVA_MAIN_CLASS
          value: io.vertx.core.Launcher
        name: java-exec
        ports:
        - containerPort: 8080
          name: http
          protocol: TCP
      dnsPolicy: ClusterFirst
  triggers:
  - type: ConfigChange
  - imageChangeParams:
      automatic: true
      containerNames:
      - java-exec
      from:
        kind: ImageStreamTag
        name: conditional-tracer:latest
    type: ImageChange

src/main/fabric8/tracer-dc.yml

apiVersion: v1
kind: DeploymentConfig
metadata:
  labels:
    group: com.example
    project: conditional-tracer
    tracer: enabled
  name: conditional-tracer-enabled
spec:
  replicas: 1
  selector:
    group: com.example
    project: conditional-tracer
    tracer: enabled
  template:
    metadata:
      labels:
        group: com.example
        project: conditional-tracer
        tracer: enabled
    spec:
      containers:
      - env:
        - name: HAWKULAR_APM_URI
          value: http://hawkular-apm
        - name: HAWKULAR_APM_USERNAME
          value: admin
        - name: HAWKULAR_APM_PASSWORD
          value: password
        - name: TRACER_ENABLED
          value: true
        - name: JAVA_APP_DIR
          value: /deployments
        - name: JAVA_MAIN_CLASS
          value: io.vertx.core.Launcher
        name: java-exec
        ports:
        - containerPort: 8080
          name: http
          protocol: TCP
      dnsPolicy: ClusterFirst
  triggers:
  - type: ConfigChange
  - imageChangeParams:
      automatic: true
      containerNames:
      - java-exec
      from:
        kind: ImageStreamTag
        name: conditional-tracer:latest
    type: ImageChange

And finally, we change our route.yml to alternate the requests among the services:

src/main/fabric8/route.yml

apiVersion: v1
kind: Route
metadata:
  name: conditional-tracer
spec:
  alternateBackends:
  - kind: Service
    name: conditional-tracer-disabled
    weight: 80
  to:
    kind: Service
    name: conditional-tracer-enabled
    weight: 20

The only remaining change is within our Java code, to use a NoopTracer by default, using a concrete tracer (APMTracer) if the environment variable TRACER_ENABLED parses to true:

src/main/java/com/example/MainVerticle.java

public class MainVerticle extends AbstractVerticle {
    private Tracer tracer = NoopTracerFactory.create();

    @Override
    public void start() {
        boolean tracerEnabled = Boolean.parseBoolean(System.getenv("TRACER_ENABLED"));
        if (tracerEnabled) {
            tracer = new APMTracer();
        }
        vertx.createHttpServer()
                .requestHandler((req) -> {
                    Span span = tracer.buildSpan("hello-world-request").start();
                    span.setTag("enabled", tracerEnabled);
                    req.response().end(String.format("Hello World! Are we tracing this request? %s", System.getenv("TRACER_ENABLED")));
                    span.finish();
                })
                .listen(8080);
    }
}

At this point, we are ready to test it! As we already have an OpenShift cluster running with our Hawkular APM server, we just need to run:

$ mvn clean fabric8:deploy

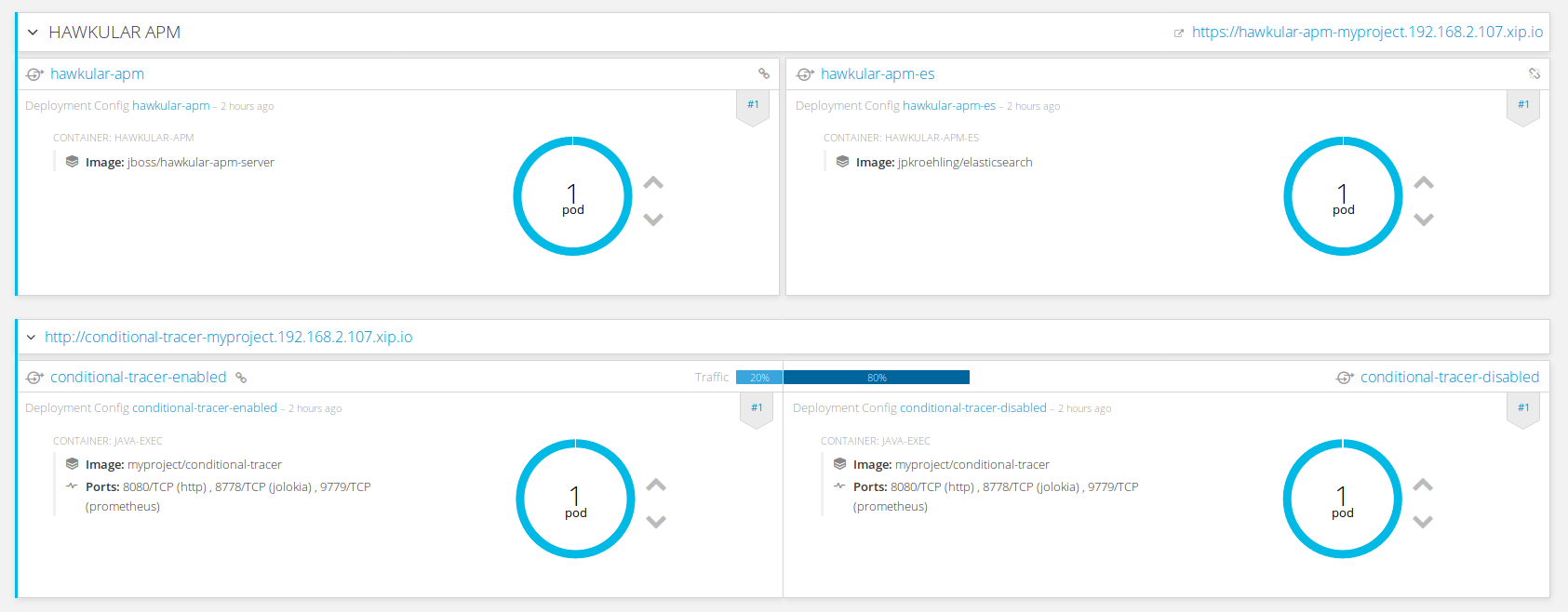

Once the build finishes running, we should see the following on OpenShift’s Web Console:

Final result

To check whether our tracing is working, we can use a script like this:

$ export URL="http://conditional-tracer-myproject.192.168.2.107.xip.io"
$ for i in `seq 1 10` ; do curl ${URL} 2>/dev/null | awk '{print $NF}' ; done | sort | uniq -c

An output similar to this one should be printed out:

8 false
2 true

This means that 8 didn’t have their traces published and two requests had their traces published to Hawkular APM. You can check that by logging into Hawkular APM (username: admin, password: password) and looking into the Distributed Tracing screen. There should be only two traces there.

Tip
 You might be tempted to try opening the URL in your browser and hitting refresh, but you’ll notice that the OpenShift router tries to send you to the same backend service all the time. For this reason, it makes more sense to test on the command line with curl.

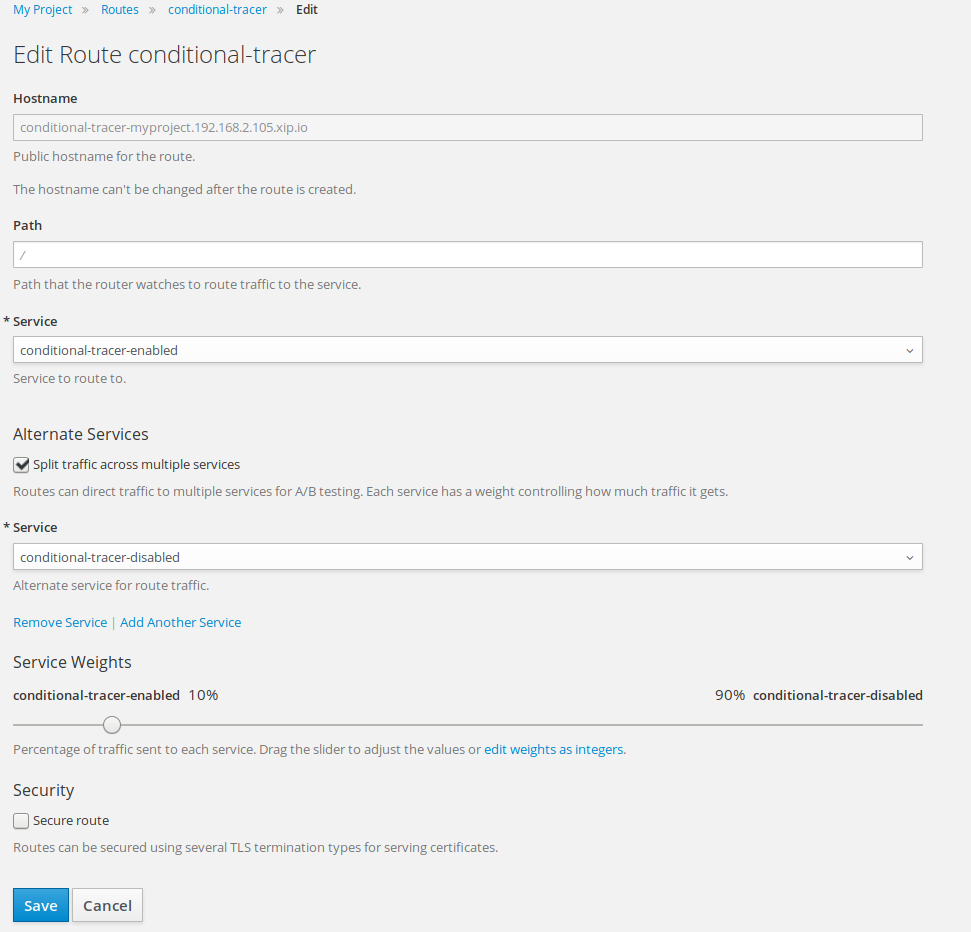

From this point and on, we can adjust the percentage by changing the route. One way to do that is by issuing the command oc edit route conditional-tracer, or by navigating on the UI to Applications - Routes - conditional-tracer - Actions - Edit:

Final result

Wrapping up

Deciding whether a transaction should be traced or not is a decision that should be outsourced as much as possible to the underlying Tracer, possibly with data coming from different sources. Having a simple switch on the code loading the Tracer, however, might prove invaluable to admins in determined situations. Given the simplicity of this solution, there’s no reason not to have it!

The full source code for this example can be found at github.com/jpkrohling/conditional-tracer.
