Display custom events in Grafana

A blog post by Joel Takvorian

The latest release of the Hawkular Grafana plugin (1.0.7) introduced a new feature, implementing Grafana Annotations.

A logged error, associated with a tag

In Grafana, annotations allow to display vertical bars on charts to illustrate an event in time, with a dedicated tooltip containing a custom text and eventually tags. All annotations are shared across graphs in a given dashboard.

In hawkular-metrics, events can be stored in String metrics. You can send string datapoints, just like you would send gauge or counter datapoints on other metrics. Simply note that these strings are currently limited to 2 KB length.

Sample application

As a concrete example, we will reuse the sample application that I described in a previous post, which creates metrics through dropwizard with the pretext of a small benchmarking scenario. It will be modified to generate some events: scenario steps and error logs.

The scenario consisted in running two cache implementations (guava and ehcache), backed by a fake database, on which get accesses are being monitored. We’ll introduce random errors in DB access, that will be caught and logged to Hawkular.

To log events in Hawkular, we create a simple function that posts the event (ie. a timestamp plus a string) to a string metric, named here "cartago.timeline". It also sets a tag that refers to the cache implementation that originated the event.

For simplicity, most configurable items are hard-coded here:

    private void logHawkularEvent(String text, String impl) {
        HttpClient client = HttpClientBuilder.create().build();
        HttpPost post = new HttpPost("http://127.0.0.1:8080/hawkular/metrics/strings/cartago.timeline/raw");
        post.setHeader("Hawkular-Tenant", "com.hawkular.sample");
        post.setHeader("Content-type", "application/json");
        post.setEntity(new StringEntity("[{\"timestamp\": " + Clock.defaultClock().getTime()
                + ", \"value\": \"" + text + "\", \"tags\": {\"impl\": \"" + impl
                + "\"}}]", Charset.defaultCharset()));
        try {
            client.execute(post);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

And the whole scenario:

    void runScenario(List<String> keys, Backend backend, String name) {
        // Log starting scenario
        logHawkularEvent("Starting scenario for " + name, name);

        // Init/register metrics
        registry.register(name + ".size", (Gauge<Long>) backend::count);
        Timer readTimer = registry.timer(name + ".read");

        // Scenario (which consists in getting values from cache during 5 minutes)
        ThreadLocalRandom rnd = ThreadLocalRandom.current();
        Stopwatch watch = Stopwatch.createStarted();
        while (watch.elapsed(TimeUnit.MINUTES) < 5) {
            try {
                int pos = rnd.nextInt(0, keys.size());
                final Timer.Context ctx = readTimer.time();
                try {
                    backend.get(keys.get(pos));
                } finally {
                    ctx.stop();
                }
            } catch (Exception e) {
                // Log any error to Hawkular
                logHawkularEvent(e.getMessage(), name);
            }
        }

        // Log ending scenario
        logHawkularEvent("Ending scenario for " + name, name);
    }

It’s pretty much everything for our sample application.

Usage in Grafana

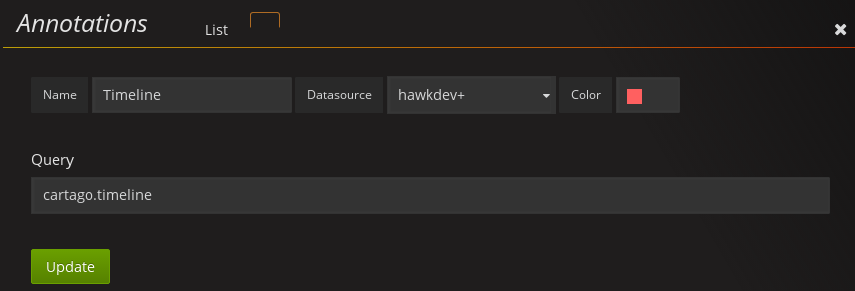

Now let’s switch to Grafana. From the manage dashboard menu you can access the Annotations settings to add a new one. From there you can select your Hawkular datasource and provide in query the name of the String metric used in the applications:

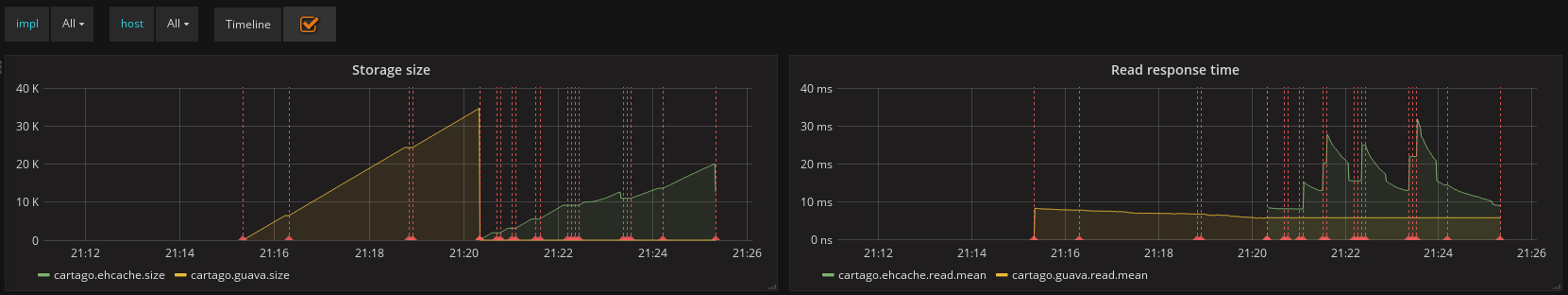

And that’s it. Events sent to cartago.timeline will be displayed on all charts of this dashboard:

When passing the cursor over the events, a tooltip is displayed:

"Starting the scenario" event, with ehcache tag displayed

So as you can see, annotations are a very simple way to show valuable information in Grafana. In this example we send all our events on the same string metric, but of course it’s possible to dispatch them on several ones, and thus configure several annotation queries in Grafana with different colors.

Published by Joel Takvorian on 03 February 2017
