Hawkular APM Distributed Tracing of Polyglot Application using Zipkin Instrumentations

A blog post by Pavol Loffay

apm | polyglot | tracing | zipkin

The latest focus of Hawkular APM has been in building a compatibility layer for Zipkin instrumented applications. This enables Hawkular APM to leverage Zipkin instrumentation libraries and instrument polyglot applications.

In this blog post we will look how to use Zipkin instrumentation libraries to instrument polyglot environment and how the reported data looks in Hawkular APM and Zipkin server.

Polyglot Application

A typical polyglot application consists of multiple services written in different programming languages. These services interact together to fulfill some business needs or tasks.

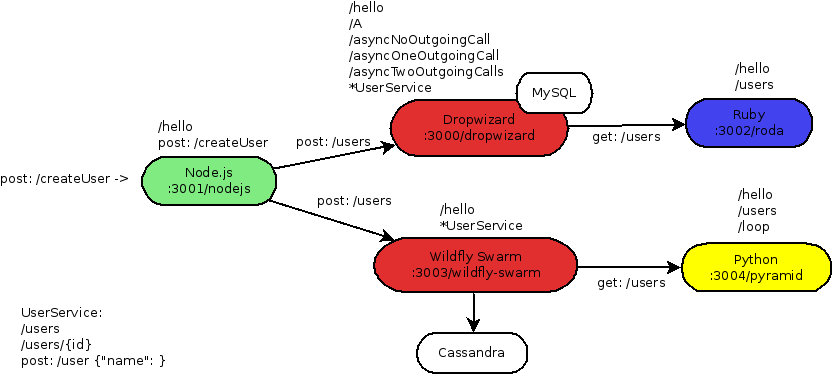

The following image shows the architecture of our polyglot application.

apm zipkin polyglot arch
Figure 1. Architecture of polyglot application

There are five applications written in 4 languages: Java, JavaScript, Python and Ruby. It uses two databases MySQL and Apache Cassandra. Applications expose various REST endpoints which simulate some behaviour. For example creating a user in a database or an asynchronous task.

Each application lives in a separate docker container. The whole environment can be deployed using one line docker-compose command. Overall there are seven containers including Apache Kafka to collect span data. The complete source code with instructions how to run it can be found on Github.

Instrumentation Libraries

There are several zipkin instrumentation libraries. Developers have to choose the relevant libraries for their target language (and framework). If there is no instrumentation for a specific framework they have to report spans to the server explicitly, thus having an instrumentation library for a popular web framework is a big advantage (not limited to web).

In a typical microservice environment it is also necessary to add instrumentation for outgoing requests so one application may use two or more Zipkin compliant instrumentation libraries. These two implementations have to share trace context, and therefore proper initialization is required.

Our applications are instrumented with following instrumentations:

These libraries are typically developed by a community and therefore reported data may differ. For example a key of binary annotation representing HTTP URL can be http.url or http.uri or even http.path. Some of the libraries do not report HTTP status code. Name of a span often represents HTTP method but some instrumentations put there URL or even other data (cassandra-zipkin-tracing). It is not an invalid behaviour, just keep in mind when querying data or exporting to external systems for an analysis.

There are also a couple of issues which can lead to an incorrect data presentation in Hawkular APM. Issues were also reported to the Zipkin project.

Run the Polyglot Application

Follow the instructions on Github to run the environment and start Hawkular APM server.

Execute following requests which we will analyze in the following sections.

Example HTTP requests
1. curl -ivX GET 'http://localhost:3001/nodejs/hello'
2. curl -ivX GET 'http://localhost:3000/dropwizard/A
3. curl -ivX GET 'http://localhost:3000/dropwizard/asyncTwoOutgoingCalls'
4. curl -ivX POST -H 'Content-Type: application/json' 'http://localhost:3001/nodejs/createUser' -d '{"name": "jdoe"}'

Server Comparisons

This section compares user interfaces of Hawkular APM and Zipkin server.

Hawkular APM Server

In Hawkular APM user interface we are going to look at distributed tracing tab. If you run previous commands there should be some data to analyze.

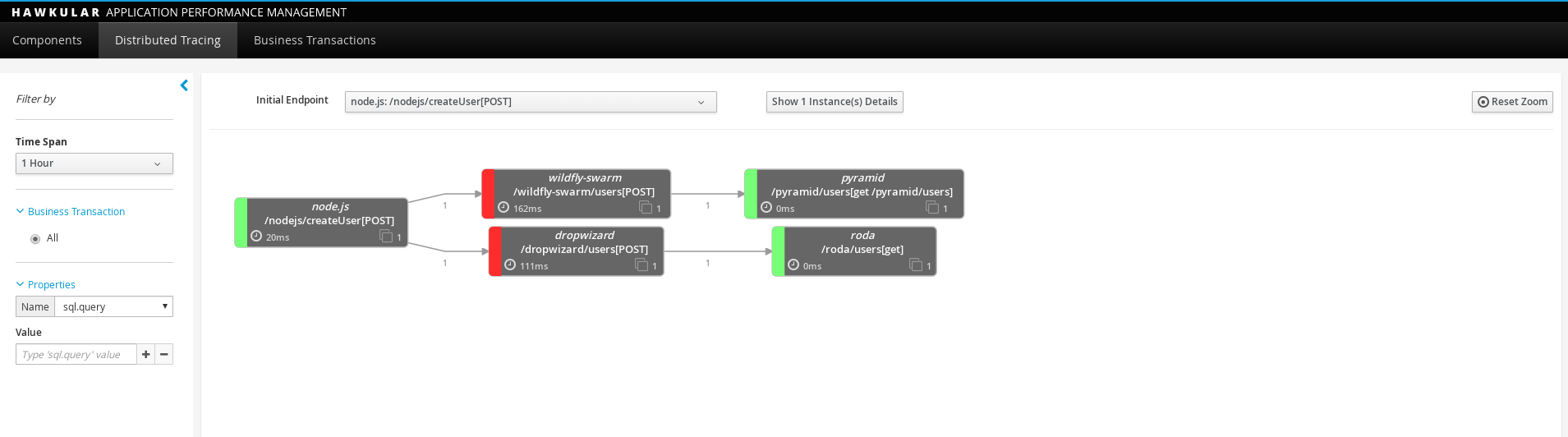

Following figure shows aggregated service interactions for selected initial endpoint (fourth request). Nodes represent endpoint with URL and edges invocation flow.

Nodes holds statistics information like average, minimum and maximum duration, total number of executions, service name and invoked URL. Edges contain timing information of a network latency. This screen only shows nodes with a URL. Databases and other components are shown in trace detail view.

For query capabilities we can specify time span, business transaction (currently available only for java agent instrumentation and OpenTracing provider) and properties. Properties represent binary annotations.

apm distributed tracing createUser
Figure 2. Hawkular APM Distributed Tracing

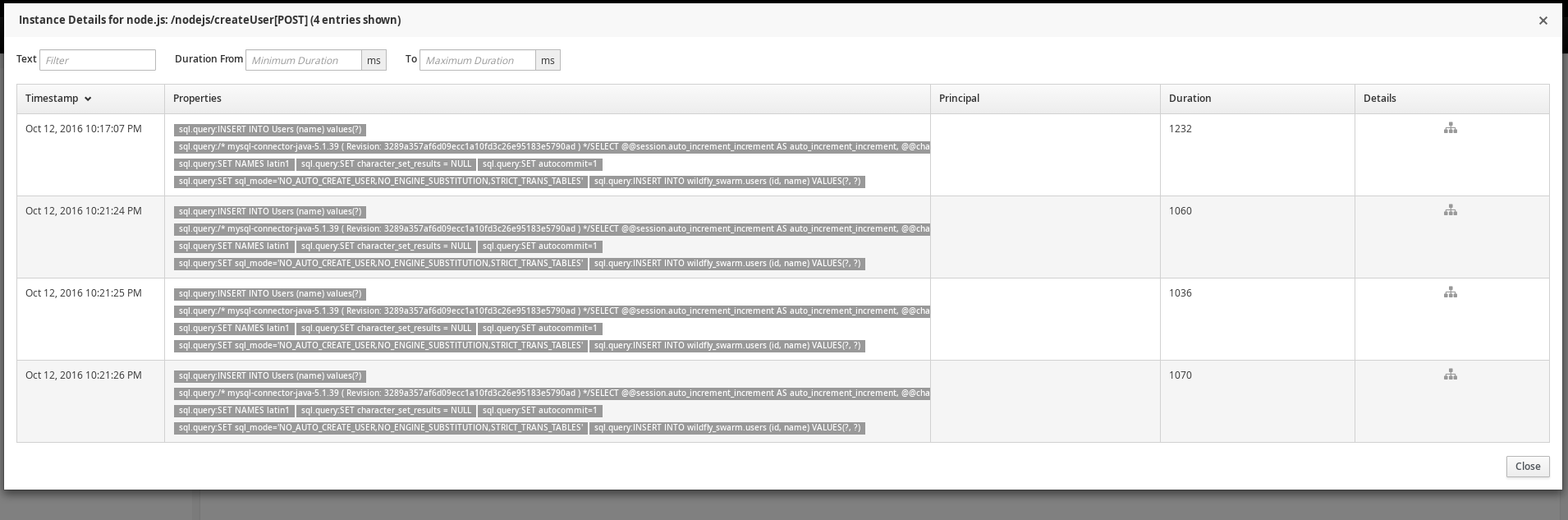

Next screen shows instance details. In other words a list of traces for the selected initial endpoint. Table contains basic information as collected properties, start time, principal (for java agent instrumentation) and overall trace duration. Details button opens a detailed graph.

apm instance details
Figure 3. Hawkular APM Instance Details

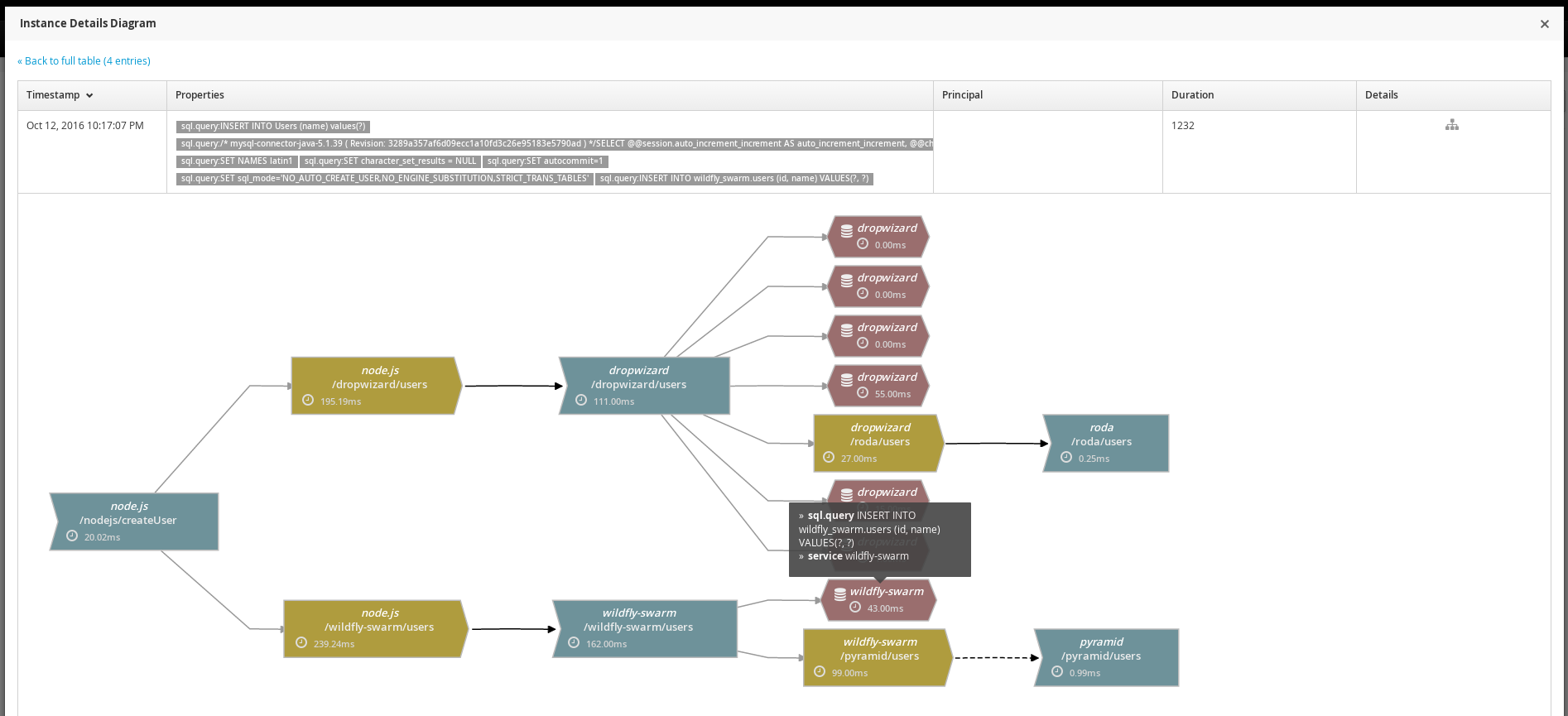

In the detailed view users can see different types of nodes: producers (client span), consumers (server span) and components (databases, EJBs). Tooltip is showing recorded binary annotations. In this case it is a CQL query for storing an user into Apache Cassandra.

This concrete graph starts with a consumer (REST handler) and produces two producers (outgoing requests). These requests are consumed by dropwizard and wildfly-swarm application and so on.

apm instance details createUser
Figure 4. Hawkular APM Instance Details

Zipkin Server

Let’s compare this now how the native Zipkin server shows stuff. Please start Zipkin server and execute requests from Example HTTP requests.

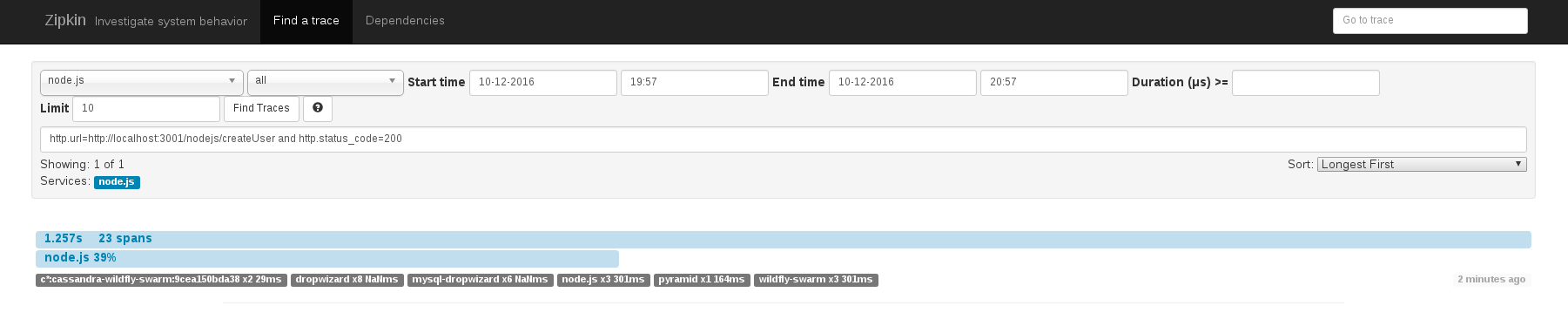

The first thing we are going to look at is a query capability. The user interface offers to specify service name and names of recorded spans of a given service. It is possible to specify span’s start time, end time and duration range. For a more specific query it is possible to query on binary annotations, which is helpful if we are looking for specific spans, for example HTTP URL of invoked service. In the following figure it can be seen that we specified URL and HTTP status code of invoked service.

The result of the query shows one trace which consist of 23 spans. There is also a trace duration time and information which services were invoked within that trace (also with a duration if possible to calculate).

apm zipkin createUser query
Figure 5. Zipkin Query

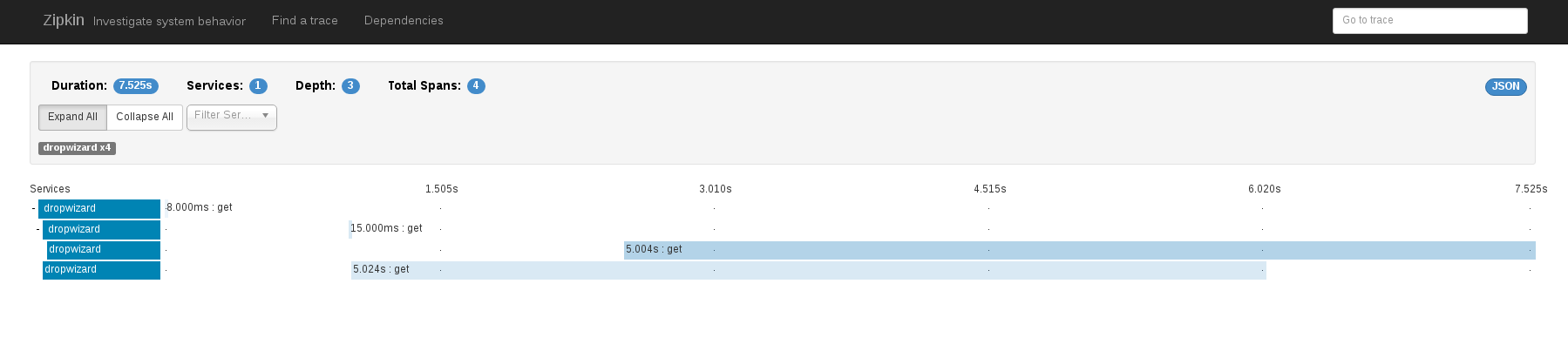

The next screen is a trace instance view. It shows a timeline with timing data relative to the trace start time. In the following figure there is a trace view for the third call. It can be seen that it represent an asynchronous call. The first call ended before its descendants.

apm zipkin async
Figure 6. Zipkin Trace Detail

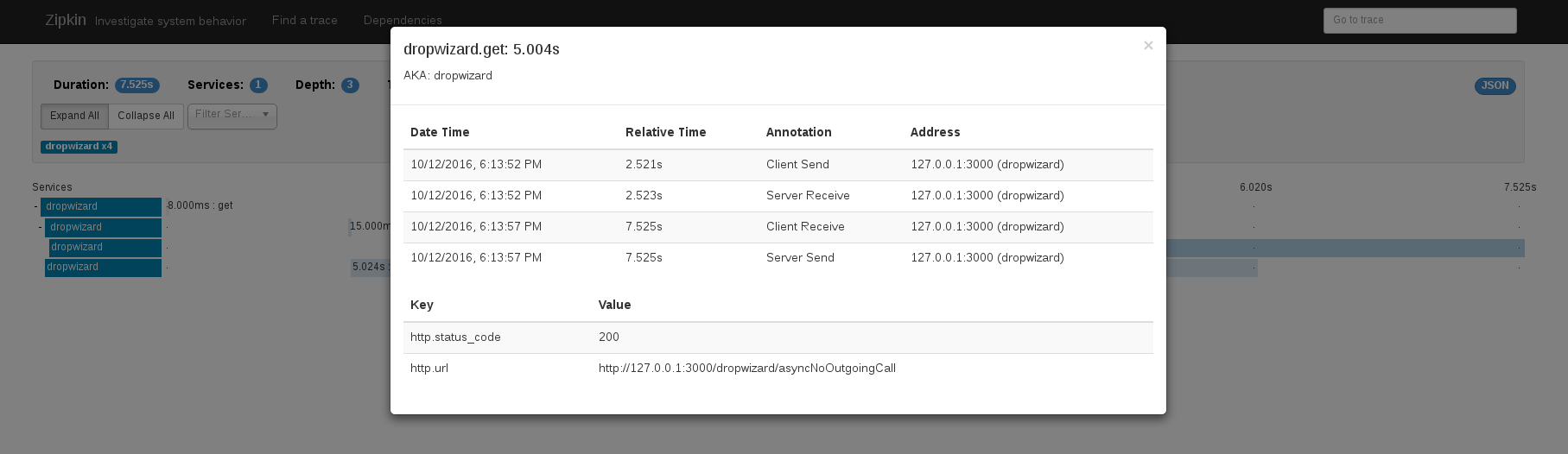

When you click on a specific span it shows a span detail view with events recorded within the span. There are also recorded binary annotations which denotes information like HTTP URL or HTTP status code. Instrumented application can add custom binary annotations.

apm zipkin async span detail
Figure 7. Zipkin Span Detail

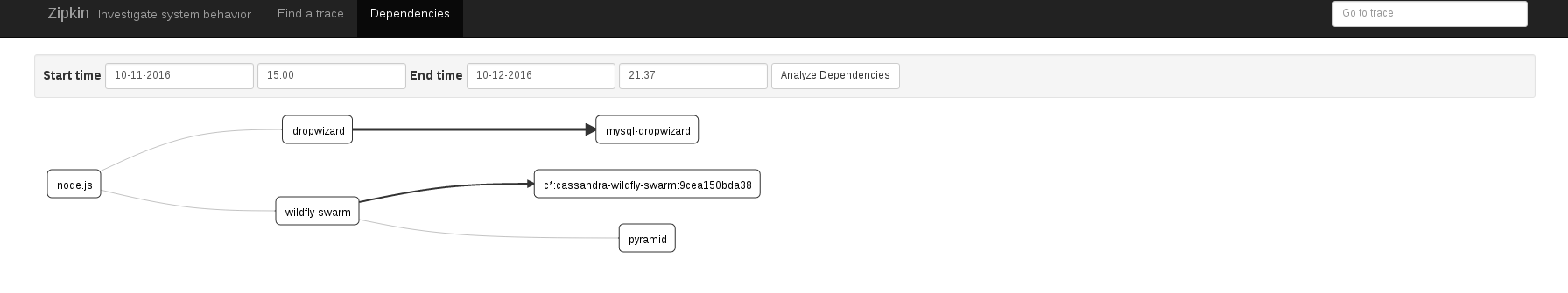

The last Zipkin screen is showing dependencies between services. When you click on a specific service it shows how many calls were triggered from a service to a service. The more calls to the service the wider arrow.

apm zipkin dependencies
Figure 8. Zipkin Service Dependencies


We have seen a brief comparison of Hawkular APM and Zipkin server. Both of these projects display data differently. Hawkular APM is doing more high level aggregations based on user specific filter with calculation of statistics. On the other side Zipkin displays spans in "RAW" fashion. There are definitely advantages and disadvantages for both of these approaches.

We are always interested to hear feedback from users on how the information presentation may be improved to provide a powerful tool to analyze timing data of distributed applications.
