Testing collectd integration

A blog post by Thomas Segismont

collectd | testing | Travis



Hawkular Metrics is able to store data coming from collectd. To enable this feature, you need to start the ptrans proxy, point it to your Metrics server, and configure the collectd network plugin to send data to ptrans.

collectd/ptrans/metrics stack

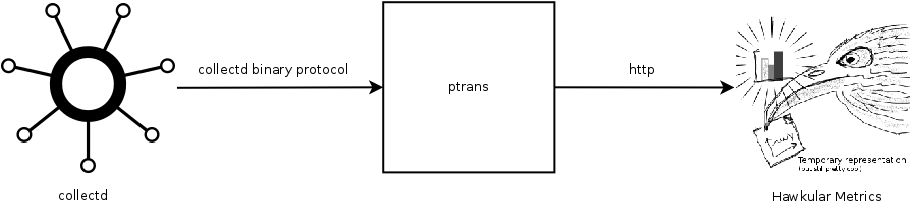

Figure 1. collectd/ptrans/metrics stack

Regression test requirements

To make sure the collectd/ptrans/Hawkular stack never gets broken, we wanted to have an integration test. This test should fill the following requirements:

  • do not fail the build on machines where collectd is not available (non-Linux developers machines, or simply machines where collectd is not installed)

  • run on Travis-CI, where each pull request is tested before being merged

  • make sure all data sent from collectd lands on the Hawkular Metrics server

  • run as quickly as possible

Here’s an outline of the implementation.

Skip test when collectd is not available

jUnit Assumptions provide a nice way to test the presence of external dependencies. The default jUnit runner will skip the test if the assumption fails. So skipping the test when collectd is not available is just a matter of testing if the collectd binary exists, is a regular file, and is executable.

private static final String COLLECTD_PATH = System.getProperty("collectd.path", "/usr/sbin/collectd");

// ...

@Before
public void setUp() throws Exception {
    // ...
    assumeCollectdIsPresent();
    // ...
}

private void assumeCollectdIsPresent() {
    Path path = Paths.get(COLLECTD_PATH);
    assumeTrue(COLLECTD_PATH + " does not exist", Files.exists(path));
    assumeTrue(COLLECTD_PATH + " is not a file", Files.isRegularFile(path));
    assumeTrue(COLLECTD_PATH + " is not executable", Files.isExecutable(path));
}

Run on Travis-CI

Travis lets you customize the virtual running the build. Installing packages on the Ubuntu-based VM is very straightforward, just add a couple of lines in the before_install target of your .travis.yml file:

before_install:
- sudo apt-get update -qq
- sudo apt-get install -qq collectd collectd-utils

Verify data has landed on the Metrics server

collectd lets you configure one or more write plugins. The network plugin is required to send data to ptrans. We also activate the csv plugin and make it log the measurements to stdout:

LoadPlugin csv
<Plugin csv>
    DataDir stdout
</Plugin>

LoadPlugin network
<Plugin network>
    Server "127.0.0.1" "25826"
    ReportStats false
</Plugin>

Then we start collectd, preventing it to fork to the background with the -f option, and wait until a minimum number of measurements has been sent:

@Test
public void shouldFindCollectdMetricsOnServer() throws Exception {

    // ...

    ImmutableList.Builder<String> collectdCmd = ImmutableList.builder();
    collectdCmd.add(COLLECTD_PATH, "-C", collectdConfFile.getAbsolutePath(), "-f");
    collectdProcessBuilder.command(collectdCmd.build());
    collectdProcess = collectdProcessBuilder.start();

    waitForCollectdValues();

    // ...

}

private void waitForCollectdValues() throws Exception {
    long c;
    do {
        Thread.sleep(MILLISECONDS.convert(1, SECONDS));
        c = Files.lines(collectdOut.toPath())
                 .filter(l -> l.startsWith("PUTVAL"))
                 .collect(counting());
    } while (c < MINIMUM);
}

When enough measurements have been collected and sent, all we need to do is to parse collectd stdout and compare with server data, which can be loaded with an HTTP request.

Run as quickly as possible

At this point, all the ingredients can be combined to build an integration test. But the experience showed that running it could take quite some time, even if the minimum number of measurements was low, and data collectd frequently (every second).

A bit of investigation demonstrated that the test was spending an unexpected amount of time in the waitForCollectdValues method. It turned out that buffering of collectd output was the cause. To avoid it, we can use the stdbuf tool from GNU coreutils: as explained in the manual page, it’s a tool to run a command "with modified buffering operations for its standard streams".

With this slight modification, the test runs in a few seconds:

File stdbuf = new File("/usr/bin/stdbuf");
ImmutableList.Builder<String> collectdCmd = ImmutableList.builder();
if (stdbuf.exists() && stdbuf.canExecute()) {
    collectdCmd.add(stdbuf.getAbsolutePath(), "-o0", "-e0");
}
collectdCmd.add(COLLECTD_PATH, "-C", collectdConfFile.getAbsolutePath(), "-f");
collectdProcessBuilder.command(collectdCmd.build());
collectdProcess = collectdProcessBuilder.start();

That’s it!




Published by Thomas Segismont on 08 April 2015
